Optical Specifications |

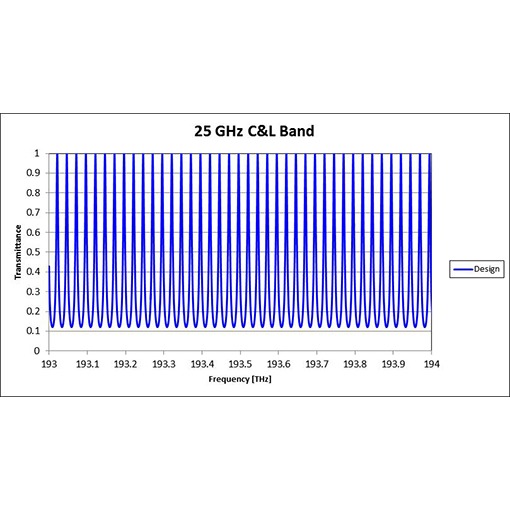

Free Spectral Range [GHz] |
25 +/- 0.01 |
Operating Wavelength Range [nm] |
1520 ~ 1620 |
FSR Temperature Stability [MHz/C] |
-0.18 |
ITU Grid Temperature Tuning [GHz/C] |
-1.22 |
Operating Temperature Range [deg C] |
0 ~ 100 |
Parallelism [arc-seconds] |
< 0.5 arc-seconds for etalon filters |
Physical Specifications |
Filter Size (length x width) [mm] |
5.0 x 5.0 |
Reliability |
Environmental Testing |
Telecordia GR1221 |
Mechanical Durability |
Telecordia GR1221 |
